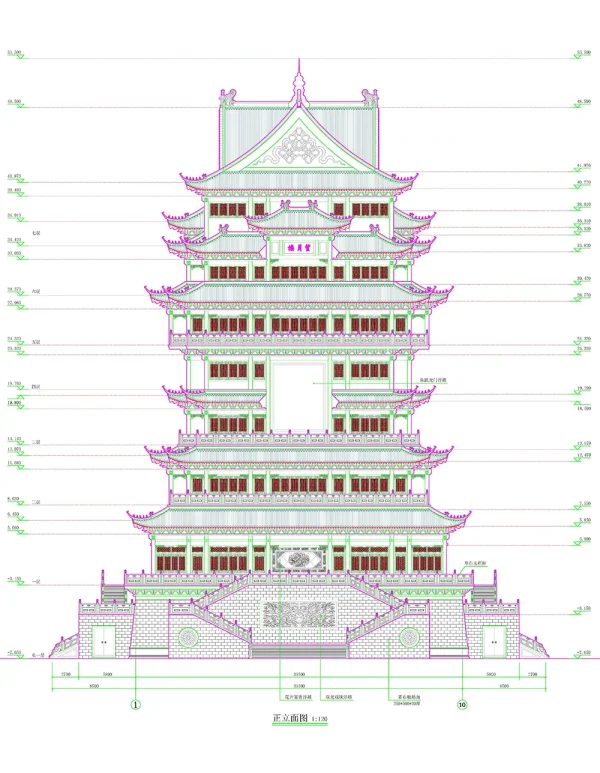

The front elevation of a seven - storey pavilion

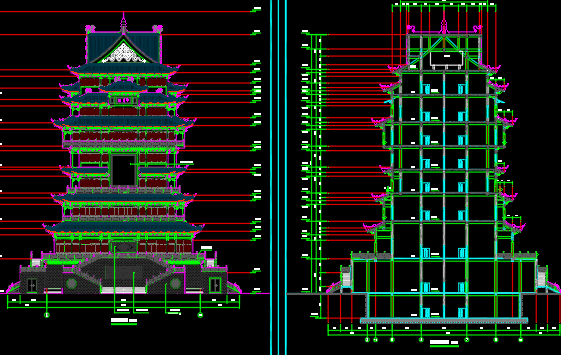

Elevation and section of a seven-storey pavilion/building
Reinforcement drawing of the first floor structure
Architectural plan of the pavilion floor
Actual scene photos of the seven-storey attic after completion

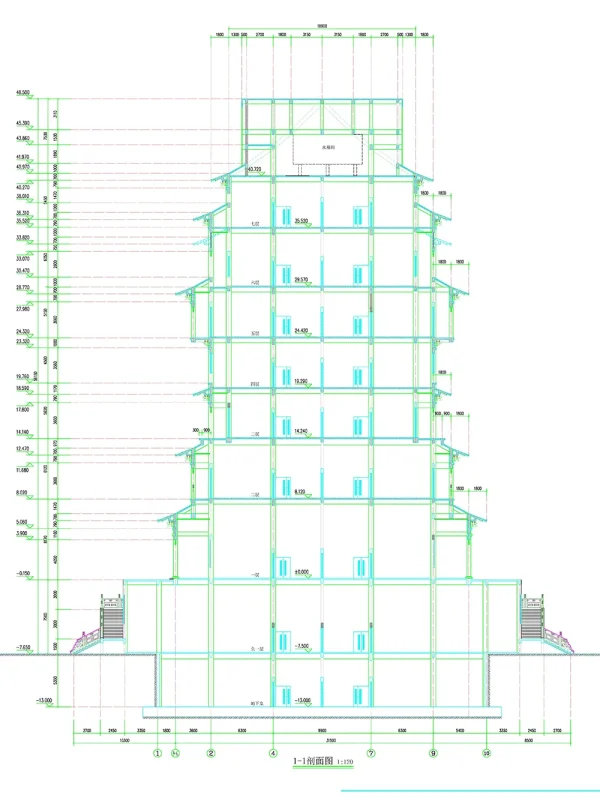

Section of the attic
Overall rendering of the pavilion
Rendering of the pavilion
  1. The front elevation of a seven - storey pavilion
  2. Elevation and section of a seven-storey pavilion/building
  3. Reinforcement drawing of the first floor structure
  4. Architectural plan of the pavilion floor
  5. Actual scene photos of the seven-storey attic after completion
  6. Section of the attic
  7. Overall rendering of the pavilion
  8. Rendering of the pavilion

The drawings of Wangyue Tower

原价为：$3.00。当前价格为：$2.85。

Complete construction drawings of a 56-meter attic with a 7-story cement structure

分类： 标签： , , , , , 品牌：
  1. Reinforced concrete frame structure, with a building of seven floors (pavilion – style architecture).
  2. Floor area: 7,520.41 square meters; overall building height: 56.150 meters.
  3. Design service life of the building: 50 years.
  4. Building classification and fire resistance rating: Class II, Grade II.
  5. Seismic design: The local area is a seismic intensity zone of 6 degrees.
  6. Include renderings, complete architectural construction drawings, structural construction drawings, and photos of the completed physical object.
