Formwork-Free Steel Mesh Concrete Wall – A New Building Solution for Self-Constructed Houses

In recent years, Formwork-free steel mesh concrete wall has become a new favorite in China’s Rural self-build house field, with its groundbreaking design breaking traditional wall limitations. This wall combines structural stability, thermal insulation, soundproofing, cost savings and rapid construction, making it ideal for Self-built home, even compatible with Ancient Chinese architecture, Chinese temple construction and Ancestral hall renovation. As a cast-in-place wall, it allows easy pipeline pre-installation and PLC integration for smart homes. For prefabricated material details, refer to theAmerican Concrete Institute (ACI),

With flexible design and transparent costs, it saves later decoration expenses, supporting high-end smart villas, sustainable farmhouses, low-cost village houses and passive houses. For passive house matching, check the Passive House Institute. Its prefabricated standard steel mesh (e.g., 240mm-thick walls) enables on-site assembly by ordinary workers; combined with low-cost concrete pumps, it accelerates Rural self-build house construction significantly.

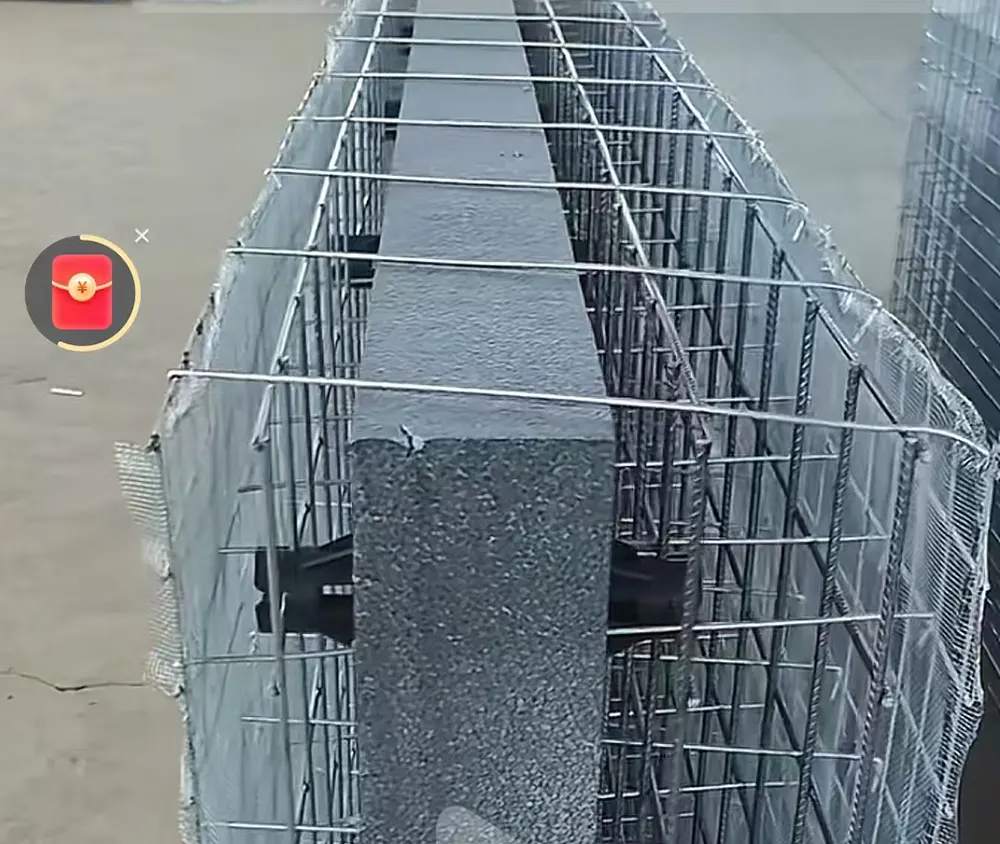

1. Factory-prefabricated components allow on-site splicing ofFormwork-free steel mesh concrete wall’s double-layer steel mesh with built-in fire-resistant insulation boards, fixed by metal tie bars—fast, precise, and operable by ordinary workers. No formwork erection/removal saves labor costs, focusing expenses on the house’s main structure.
2. The steel mesh cavity of Formwork-free steel mesh concrete wall is firmly fixed to structural columns/ring beams (overlap ≥100mm), ensuring no loosening during pouring. Self-compacting concrete is poured in layers; outer large mesh holes facilitate slurry penetration, inner dense mesh ensures compactness, no additional vibration needed, and the rough surface simplifies decoration.
3. Exterior walls use fiberglass mesh, anti-crack mortar and weather-resistant coating; interior walls can be directly plastered. Compared with traditional brick walls, the construction period is shortened by over 30%, labor costs reduced by 50%.

II.Diverse Specifications of Formwork-Free Steel Mesh Concrete Wall for Full Scenarios

1. Exterior walls: Thickness customizable 150–300mm (240mm standard, 300mm for cold regions); refer to ASTM for insulation standards. Double-layer hot-dip galvanized steel mesh (outer 1.0–2mm, 50×50mm apertures; inner 0.3–0.6mm fine mesh) ensures load-bearing and concrete density. Built-in Grade A1 insulation boards (50–150mm) integrate thermal insulation and fire protection (thermal conductivity ≤0.04W/(m·K)).

2. Interior walls: Thickness 100–200mm (120/150mm common), saving space. Hot-dip galvanized steel mesh ensures stability; optional 20–50mm sound insulation boards (≥38dB) isolate noise, with simplified configuration available for cost balance.

3. Structural safety: Brick-concrete-like system (250×250mm structural columns, 300mm ring beams) suits low-mid-rise buildings. Frame system (Q235B/Q355B steel beams/columns) with S-shaped tie bars achieves seismic grade 6–8, ensuring safety.

1. Sturdy and Durable Formwork-Free Steel Mesh Concrete Wall, for Total Peace of Mind: The outer mesh made of thick steel wires forms a robust framework for Composite Steel Mesh Concrete Wall, while the inner mesh of fine steel wires ensures concrete density. Integrated seamlessly with concrete and rock wool boards, the Composite Steel Mesh Concrete Wall delivers far superior crack and impermeability resistance compared with traditional wall structures. The hot-dip galvanized material provides excellent rust and corrosion protection. Combined with reinforced structural design, it boasts a service life of over 40 years with almost zero maintenance costs in the later stage. A single construction ensures long-term hassle-free use.

2. Energy-efficient and Comfortable Formwork-Free Steel Mesh Concrete Wall, for a Pleasant Living Experience: The exterior wall of Composite Steel Mesh Concrete Wall is built-in with rock wool boards for thermal insulation, maintaining a stable indoor temperature, significantly reducing energy consumption, and keeping the interior warm in winter and cool in summer while cutting down electricity bills. The interior wall can be optionally equipped with sound insulation components to block external noise and create a quiet living environment. It adapts to different climatic conditions and residential needs, making the residence both practical and comfortable. For energy-saving building certifications, refer to LEED guidelines.

3. Flexible and Adaptable Formwork-Free Steel Mesh Concrete Wall, for Full-scenario Coverage: Thickness, thermal insulation and sound insulation performance of Composite Steel Mesh Concrete Wall can all be customized on demand, suitable for diverse climates such as severely cold and hot-humid areas. It is compatible with two structural systems: brick-concrete-like system and frame system, and fully applicable to low-to-mid-rise residential buildings and small public buildings. Regardless of regional differences and varied requirements, it can achieve precise matching.

4. Cost-effective Formwork-Free Steel Mesh Concrete Wall, for Better Cost Control: Eliminating the need for wooden formwork reduces material waste for Composite Steel Mesh Concrete Wall, and significantly cuts down labor and construction period costs. The materials are affordable and readily available. The overall construction cost is much lower than that of traditional wall structures. You can obtain a building wall with better performance at a lower cost, and the cost-effectiveness advantage is self-evident.
